Silicone Glass Braided Electrical Wire UL3122 Electrical Wire 200c
Heat Resistance Wire
Specifications:
Nominal voltage: 300V
Temperature range: 200℃
Color:Yellow
Package:305 Meters Per Roll
Size:16-26AWG
Product features:
Fiberglass braided wire has excellent resistance to high
temperature, low temperature resistance, excellent electrical
insulation performance, high voltage resistance, aging resistance,
long service life and soft and easy to install.
Product dimensions:
| Conductor | Insulation | Max.cond
resistance
(Ω/km) | Unit Length
(m)(Ft) |
Size
(AWG) | Construction
(No./mm) | Diameter
(mm) | Inside thickness(mm) | Diameter
(mm) |
| 26 | 7/0.16 | 0.48 | 0.60 | 1.68 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.60 | 1.81 | 89.3 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 0.60 | 1.97 | 56.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.60 | 2.14 | 35.2 | 305/1000 |
| 18 | 7/0.39 | 1.19 | 0.60 | 2.39 | 22.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.60 | 2.69 | 14 | 305/1000 |
| 24 | 1/0.50 | 0.50 | 0.65 | 1.80 | 89.3 | 3051000 |
| 22 | 1/0.65 | 0.65 | 0.65 | 1.95 | 56.4 | 305/1000 |
| 20 | 1/0.81 | 0.81 | 0.65 | 2.11 | 35.2 | 305/1000 |
| 18 | 1/1.02 | 1.02 | 0.65 | 2.32 | 22.2 | 305/1000 |
| 16 | 1/1.20 | 1.20 | 0.65 | 2.50 | 14 | 305/1000 |
| 24 | 11/0.16 | 0.61 | 0.60 | 1.81 | 89.3 | 305/1000 |
| 22 | 17/0.16 | 0.76 | 0.60 | 1.96 | 56.4 | 305/1000 |
| 20 | 26/0.16 | 0.94 | 0.60 | 2.14 | 35.2 | 305/1000 |
| 18 | 41/0.16 | 1.18 | 0.60 | 2.38 | 22.2 | 305/1000 |
| 16 | 26/0.254 | 1.49 | 0.60 | 2.69 | 14 | 305/1000 |
| 0.3mm² | 12/0.18 | 0.71 | 0.60 | 1.91 | 59.78 | 305/1000 |
| 0.50mm² | 20/0.18 | 0.92 | 0.60 | 2.12 | 40.1 | 305/1000 |
| 0.75mm² | 30/0.18 | 1.13 | 0.60 | 2.33 | 26.7 | 305/1000 |
| 1.00mm² | 40/0.18 | 1.31 | 0.60 | 2.51 | 20 | 305/1000 |
| 1.25mm² | 50/0.18 | 1.46 | 0.60 | 2.66 | 14.35 | 305/1000 |

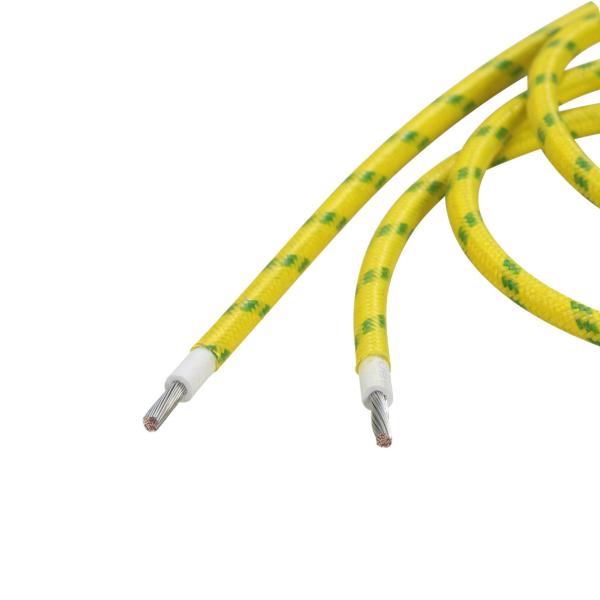

Product shot:
- Port:Shenzhen
- Lead Time :
| Quantity(Meters) | 1 - 6100 | >6100 |
| Est. Time(days) | 7 | To be negotiated |
Service
Packaging : Hard cardboard carton ( Customizable)
Shipment:
1. by express
2. by sea
3. by air plane
If you have your own shipper,you can tell me in advance.
My targert is to give my best serivce for you and hope we can have
a good cooperation!
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
FAQ:
1, What’s the MOQ?
One roll. 100M/200M/300M/305M/500M/Roll.
2, How to get the samples?
We have most of the commonly used samples in Stock.
We can offer the free samples immediately.
3, What’s the payment terms?
LC, TT, Western Union, Money Gram and PayPal
4, What’s the delivery date?
Most of the commonly used products are in Stock. We can arrange it
within one day.
We will arrange the delivery date as your requirement while the
Bulk Production.
5, How to visit your factory/company?
We are located in Dongguan City, Guangdong Province, closed to Shenzhen,Guangzhou and Hong Kong. Only one and a half hours drive away.
Convenient for visit.
